Open Platform

SUITABLE

Flexible Open Platform
Liquid Handling Robot

8-span independent channel control.
Gripper, Stacker & 3rd party equipment integration.
The flexible platform for complex experiment automation and ODM solutions.

8-span Independent 24-slot Deck API Integration 1–1000 µL
Book a Demo

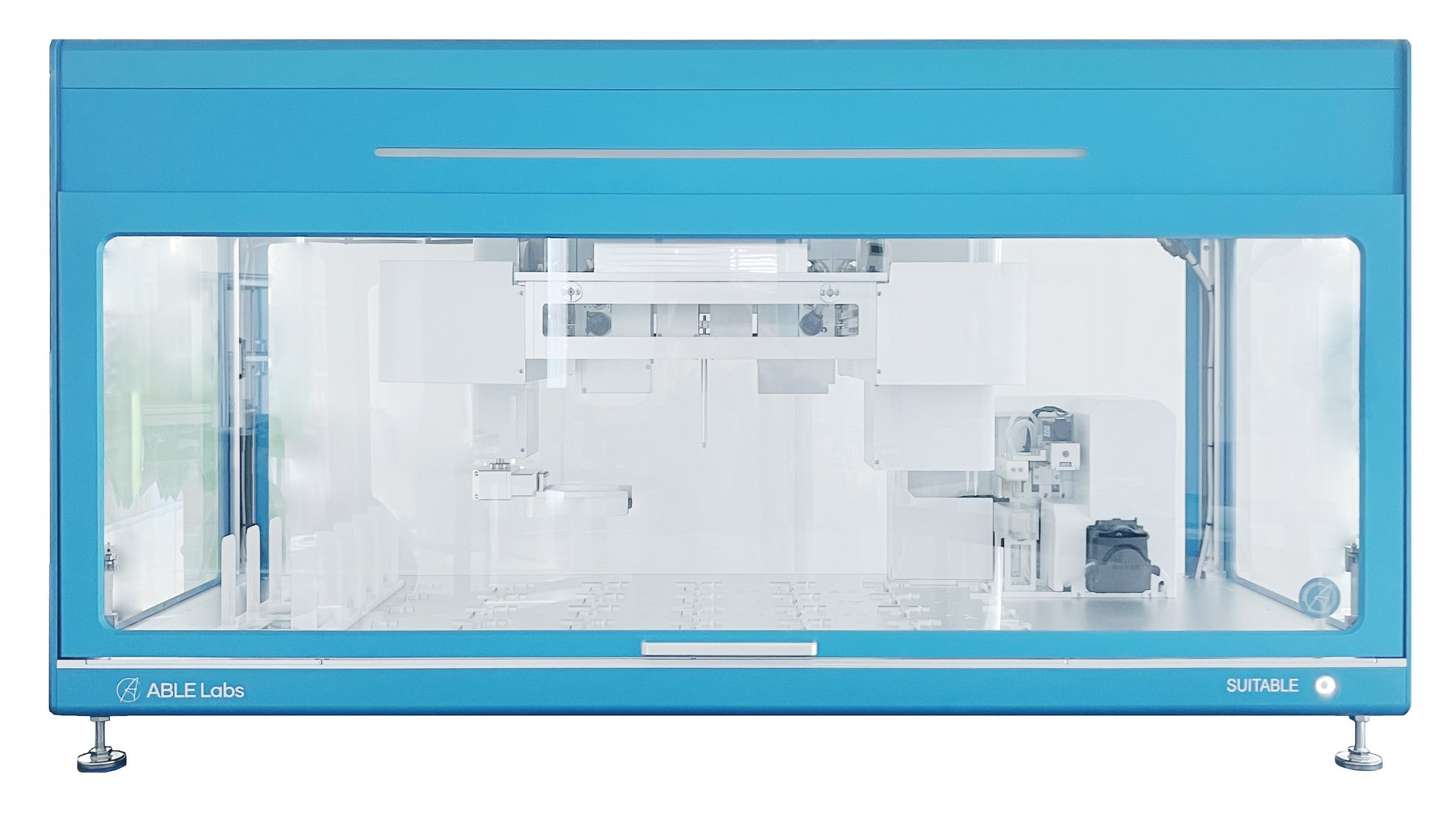

SUITABLE — Front View
SUITABLE — Angled Front View
SUITABLE — Side View
SUITABLE — Top Diagonal View
SUITABLE in Motion

Open-platform 8-span
automation in action

Independent channel control for complex experimental designs

8-span
Independent channel control
1–1000 µL
Dispensing volume range
24 Slots
6×4 deck configuration
ODM
Custom partnership available
Platform Capabilities

When SUITABLE
Is the Right Choice

8-Channel Independent Control

Each channel is controlled independently, enabling complex multi-step experiment automation. Break free from uniform channel movement with truly flexible workflows.

3rd Party Equipment Integration

Seamlessly integrate external instruments via API. Connect Inheco temperature control modules, QInstrument shakers, and various 3rd party devices into a single unified automation line.

Inheco QInstrument + Custom integrations available

Gripper & Stacker Modules

Add a Gripper module for automated plate transfer and a Stacker module for automatic loading — build a fully automated line from end to end.

Gripper — Automated plate transfer
Stacker — Automatic loading & supply

ODM/OEM Partnership

We deliver custom ODM solutions tailored to your lab's specific workflows. Hardware module adjustment + software customization + on-site validation — all in one.

24-slot Large Deck

Set up complex experiment layouts in one go with a 24-slot 6×4 deck. Double the workspace of NOTABLE's 12-slot deck.

24 Slots
6×4 deck (2× vs. NOTABLE's 12 slots)
Specifications

SUITABLE Specs

Channels 8-span independent control
Volume Range 1 – 1000 µL
Precision (full range) CV < 5% @ 2µL (20Tip, Gravimetric)
Deck Slots 24 slots (6×4 configuration)
Extension Modules Gripper, Stacker supported
External Integration Inheco, QInstrument & more via API
Dimensions W 1400 × D 615 × H 814+18 mm
Weight 160 kg
Power 221W max
Software Cloud-based, API available
Pricing Contact us for pricing
SUITABLE — Deck Slot Layout
Height +18 mm includes the top arm assembly.
Applications

When You Need
SUITABLE

When simple pipetting isn't enough — choose SUITABLE for complex experiment automation and external equipment integration.

Complex multi-step experiment automation
Multi-instrument workflows requiring coordinated execution
Molecular diagnostics sample prep automation
High-volume processing with validation report requirements
ODM/OEM automation solution development
Building automation instruments branded and delivered to clients
3rd party integrated automation lines
Inheco, QInstrument & more unified into a single system
Research institutions with custom workflow needs
Specialized experiments that standard products can't address
SUITABLE — Full Lab Automation
ODM Partnership Inquiry
Looking for a custom automation solution?

ABLE Labs delivers ODM solutions built on the SUITABLE platform, optimized for your lab's specific processes. Hardware module adjustment + software customization + on-site validation — all included.

Inquire about ODM
Workflow Examples

Experiment scenarios
automated with SUITABLE

SUITABLE handles complex, multi-step experiments from start to finish — all in one platform.

Scenario 01

Assay Automation

ELISA · NGS Library Prep · HTS Screening

1
Sample Dispensing
Independent 8-span control — unique volume per position
2
Reagent Mixing & Dilution
Auto-generate multi-reagent serial dilutions
3
Inheco Temperature Control
Simultaneous temperature hold + shaking
4
Plate Transfer (Gripper)
Auto-load reader → collect results
8-span independent Inheco Gripper
Scenario 02

Purification Automation

Nucleic Acid Extraction · Protein Purification · Bead Cleanup

1
Lysis Buffer Dispensing
Per-sample volume + automated mixing
2
Bead Binding & Washing
Magnetic bead capture → 3× wash cycles automated
3
Elution & Pooling
Individual fraction collection + concentration normalization
4
Stacker Continuous Feed
Auto plate swap → uninterrupted high-throughput
Bead-based Stacker Continuous
Scenario 03

QC Workflow

Diagnostic Sample Prep · Quality Control · Validation

1
Sample Receipt & Barcode
Windy maps sample IDs + auto-sequences processing
2
Dilution & Normalization
Auto-calculated dilution ratios + precision dispensing
3
Detection Plate Prep
Precision dispense into 96/384-well plates
4
IQ/OQ/PQ Validation Report
Windy auto-generates audit-ready documentation
Diagnostics IQ/OQ/PQ Windy
Why SUITABLE

How SUITABLE differs from
large-scale workstations

Legacy high-end liquid handling workstations are powerful — but come with constraints that don't fit most labs. SUITABLE closes that gap.

Legacy Workstations
High barriers to adoption
  • High upfront cost — often out of reach for academia & mid-size labs
  • Installation & qualification takes weeks
  • Overseas service — days or weeks to repair
  • Closed ecosystem — locked to proprietary consumables & modules
  • Customization requires separate contracts & long lead times
SUITABLE
Designed around researchers
  • Accessible pricing — right-sized for academia, CROs, and mid-size labs
  • Fast track: PoC → qualification → delivery
  • Korea-based dedicated engineers — 24-hour support, on-site service
  • Open API — freely integrate with your existing instruments
  • ODM partnership — custom automation built around your workflow
Accessible
Custom quote on request
24-hour
Korea-based support
Open API
3rd party integration
ODM
Custom partnership

Frequently Asked Questions

When should I choose SUITABLE over NOTABLE? ⌄
SUITABLE is the right choice when you need to integrate with existing lab equipment (plate readers, incubators, washers), require a larger deck for complex multi-step protocols, or want to build toward a fully automated workcell. NOTABLE is optimized for standalone pipetting; SUITABLE is designed for orchestrated automation.
Can the 8 channels be controlled independently? ⌄
Yes. SUITABLE's 8-span arm supports independent channel control. You can activate any subset of channels, enabling partial-column dispensing or variable-volume dispensing per channel — ideal for mixed-volume assay setups.
What third-party instruments can SUITABLE integrate with? ⌄
SUITABLE's open platform architecture supports integration with most standard lab instruments via serial, USB, or API-based control — including plate readers, washers, incubators, centrifuges, and robotic arms. Compatible equipment list and integration scope are confirmed during the PoC consultation.
Is ODM/OEM partnership available for SUITABLE? ⌄
Yes. ABLE Labs offers ODM/OEM collaboration for diagnostics companies and platform builders who need a customized liquid handling solution. We can tailor hardware configuration, software branding, and protocol design to your product requirements. Please contact us to discuss partnership terms.
Is SUITABLE suitable for GMP or regulated environments? ⌄
SUITABLE is designed for life science research and development environments. For GMP deployment, validation documentation (IQ/OQ/PQ) is available. If your lab requires 21 CFR Part 11 or equivalent audit trail compliance, please let our team know during the consultation — we can scope the appropriate validation package.
Does SUITABLE support gripper arms or stacker modules? ⌄
SUITABLE's open platform architecture is designed to accommodate peripheral accessories including gripper arms and plate stackers. Availability and compatibility depend on your specific workcell configuration. Contact us to discuss your automation roadmap and we'll advise on the right accessory set.
How much bench space does SUITABLE require? ⌄
SUITABLE is engineered to minimize its footprint while maximizing deck capacity. Exact dimensions vary by configuration. We recommend confirming your available bench dimensions during the PoC consultation so we can optimize the workcell layout for your space.
What does the PoC (Proof of Concept) program involve? ⌄
The PoC program lets your team evaluate SUITABLE using your actual protocols and consumables before purchase. Our application specialists set up the system at your site, run your target assay, and document performance results. This de-risks adoption and accelerates validation — particularly valuable for complex multi-instrument workflows.
What does after-sales support look like? ⌄
ABLE Labs provides local field support for installation, training, and ongoing maintenance. Our team responds remotely first for software and protocol issues, with on-site service dispatched when hardware intervention is needed. Warranty terms and SLA details are confirmed at the time of purchase.
How do I get pricing information? ⌄
SUITABLE pricing depends on deck configuration, peripheral modules, and integration scope. Please submit a consultation request via the form below — our team will respond within one business day with a tailored proposal.
Flexible Automation

Where Flexible
Automation Begins.

Free consultation and on-site PoC provided before purchase. ODM partnership inquiries are always welcome.

Request a Quote

Free consultation · On-site demo · PoC validation
